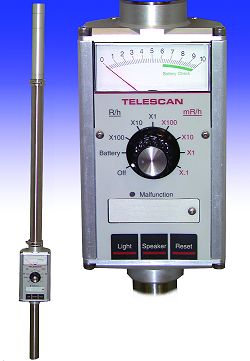

Thermo TeleScan Telescoping Survey Meter

* Wireless probe-to-meter communication

* Seven decade range

* Continuus self-diagnstic tests

* Large, easy-to-read meter

Probe-to-meter communicatin is via infrared signals, eliminating the troublesome hard-wire links used in similar instruments. The durable stainless steel telescope is designed to withstand harsh operating conditions and can be easily decontaminated.

As a micrprocessor based 'Smart' device, TeleScan continuusly performs diagnstic tests to ensure systems integrity and reduce maintenance time. GM tubes, detector high voltage, infrared communication link, and batteries are all tested routinely during operation.

If a fault occurs, the system provides a specified audible and visual indication. The user interface is typical of standard analog instruments. A large rotary switch controls the display range and battery test. Switches for the display light, speaker and meter reset are located on the front panel. The display light has a time-out feature to preserve battery power.

Specifications:
Radiation detected: X and gamma
Detectors: Two halgen-quenched, filtered GM tubes
Accuracy: +/- 10% of full scale
Energy dependence: +/- 20% from 70 keV to 1.3 MeV
Response time: 1 to 4 seconds, depending on range and response time settings
Range: 0 to 1000 R/h
Multipliers: x0.1, x1, x10, x100 mR/h and x1, x10 x100 R/h
Audio: Chirp rate proportional to dose rate
Controls: Range, battery test, speaker, display light and meter reset
Display: Analog meter, major graduations from 0 to 10, minor graduations at every 0.2
Diagnstic tests: Continuus self-tests verify integrity of detectors, HV, IR link and batteries. Visual and audible indications specific to each malfunction type.
