Thermo ASP-2/HP190A Survey Meter

(Product Number ASP-2/HP190A)

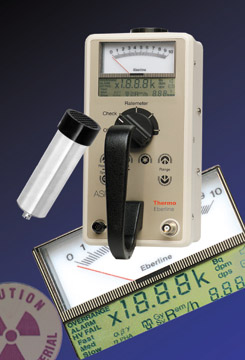

The ASP-2/HP190A is a portable radiation survey meter designed to measure alpha and beta contamination as well as ambient gamma levels. An end-window GM Detector is utilized to supply excellent sensitivity. The Detector can easily be detached from the instrument, if desired, to probe areas too tight to accommodate the entire instrument or to more ergonomically position the meter for viewing while performing measurements.

Specifications:

Detector Type: Thin end window GM with 1.4 to 2.0 mg/cm2 window thickness
Detector Sensitivity: 2500 cpm/mR/h (Cs137) int window
Beta Efficiency: 35% Sr90-Y90; 25% Tc99; 10% C14
Alpha Efficiency: 3 MeV at window
Operating Modes: Ratemeter: 5 decades
Units of Measurement: R µ (micro), m (milli), k (kilo) multipliers
Meter Scale: 0 to 10 with 50 divisions
Length: 9.1 inch (23.1 cm)
Width: 6.5 inch (16.5 cm)
Height: 8.9 inch (22.6 cm)
Weight: 5.5 lbs (2.5 kg) (With batteries)
Batteries: 3 Alkaline "C" cells, life typically 100 hours
Operating Temperature: -20 to +50 C (-4 to +122 F)
Strage Temperature: -30 to +70 C (-22 to +155 F)
Operating Humidity: to 95% non-condensing
